普通會員
產品價格￥15000.00元/噸
產品品牌未填
最小起訂≥5 噸
供貨總量1000 噸
發貨期限自買家付款之日起 10 天內發貨
瀏覽次數897
企業旺鋪http://www.hg-yg.cn/com/winow2014/
更新日期2021-06-18 16:50
品牌： |
未填 |
所在地： |
河南 鄭州市 |
起訂： |
≥5 噸 |
供貨總量： |
1000 噸 |
有效期至： |
長期有效 |
種類： |
鑄造鋁合金 |
產地： |
河南省鄭州市 |
| 種類 | 鑄造鋁合金 |
|---|---|
| 產地 | 河南省鄭州市 |
| 牌號 | 5083 5754 5052 |
| 鋁含量(﹪ ) | 90.0% |
| 品牌 | 高質量鋁板 |
| 型號 | 5050 5754 5083 |

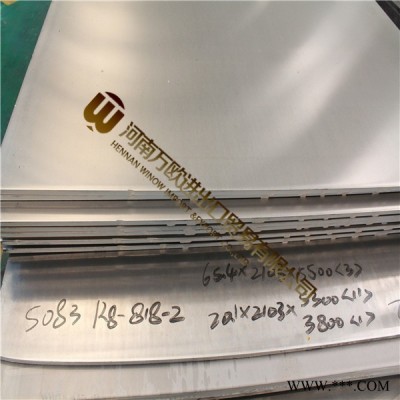

5083aluminum sheet
1. Chemical Composition Standard: GB/T Chinese Standard)
| Aluminium alloy | Si | Fe | Cu | Mn | Mg | Zn | Ti | others | Al | |
| per | all | |||||||||
| 5083 | 0.25 | 0.35 | 0.10 | 0.45-0.8 | 4.20-4.50 | 0.2 | 0.02-0.04 | 0.05 | 0.15 | R |
2. Mechanical Property Standard: GB/T (Chinese Standard)
| Aluminum alloy | Tensile Strength(mpa) | Yield Strength(mpa) | Elongation (%) |
| 5083O H111 H112 | 275-350 | 80 | 20 |
| 5083H116H321 | >305 | 130 |
|
| 5083H12 H22 H32 | 315-375 | 160 |
|
| 5083 H14 24 34 | 340-400 | 190 |
|
| 5083 H16 H26 36 | 360-420 | 230 |
|
3 product description
| description | aluminum sheet |
| material | aluminum |
| alloy number | 5083 |
| thickness | 0.6-150.0 mm |
| width | 300-2300mm |
| surface treatment | mill finished |
| surface | flat with no scratchs |
| tolerance | 0.02 mm |
| delivery time | 20 days |
| payment | T/T,L/C |
| manufacturer | hangzhou jinding |
4. Applications & delivery :
1) air plane, refrigerators ,audio equipment
2) building material: ceilings, walls
3) telephones, digital cameras
4) plastic composite board, aluminum and plastic pipe
5 Packing details & delivery :
| Packaging Detail: | (1) Standard seaworthy export packing,wooden pallets with plastics protection for the coil and sheet; (2) 15-20MT can be loaded into 20 foot container,we try to use 20 foot container,the sea freight rate is mu ch cheaper than 40 foot container. (3) the other packing can be made based on the customer requirement. (4) the packing is very strong, which has 3 lays, thick fiber, foam, plastic.the bottom is wooden pallet. You can see the detail packing information as below. |
6 Certification
Over the past few years, the products were detected qualified by National Quality Supervision and Inspection Center of Building and Decoration Materials and get through (CSS) ISO9001:2008 quality system, CSS factory certification and DNV certification. These products are widely used in the field of aeronautic & astronautics, transportation, electricity & electronics, packaging and decoration.
7 Connection
Any questions, please feel free to contact me directly!
